THERMAL ANALYSIS & ENGINEERING

Integrating knowledge on mixtures, combustion, chemical equilibrium, compressible flow, and real devices

HYBRID ROCKET

Group project
Materials: Graphite, HDPE (high-density polyethylene)
Goal: Design a nozzle and fuel grains within specified tolerances to create the highest total impulse

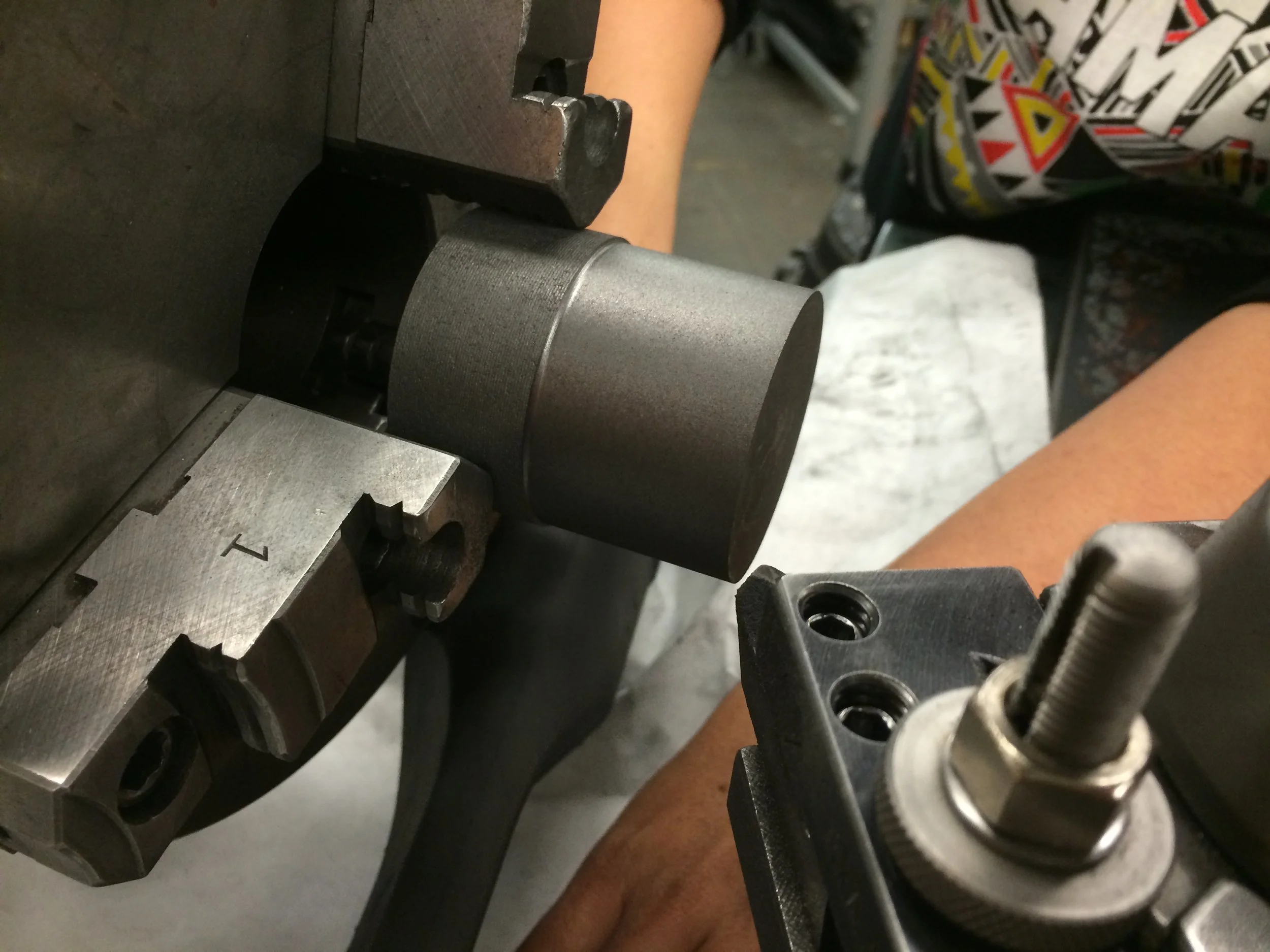

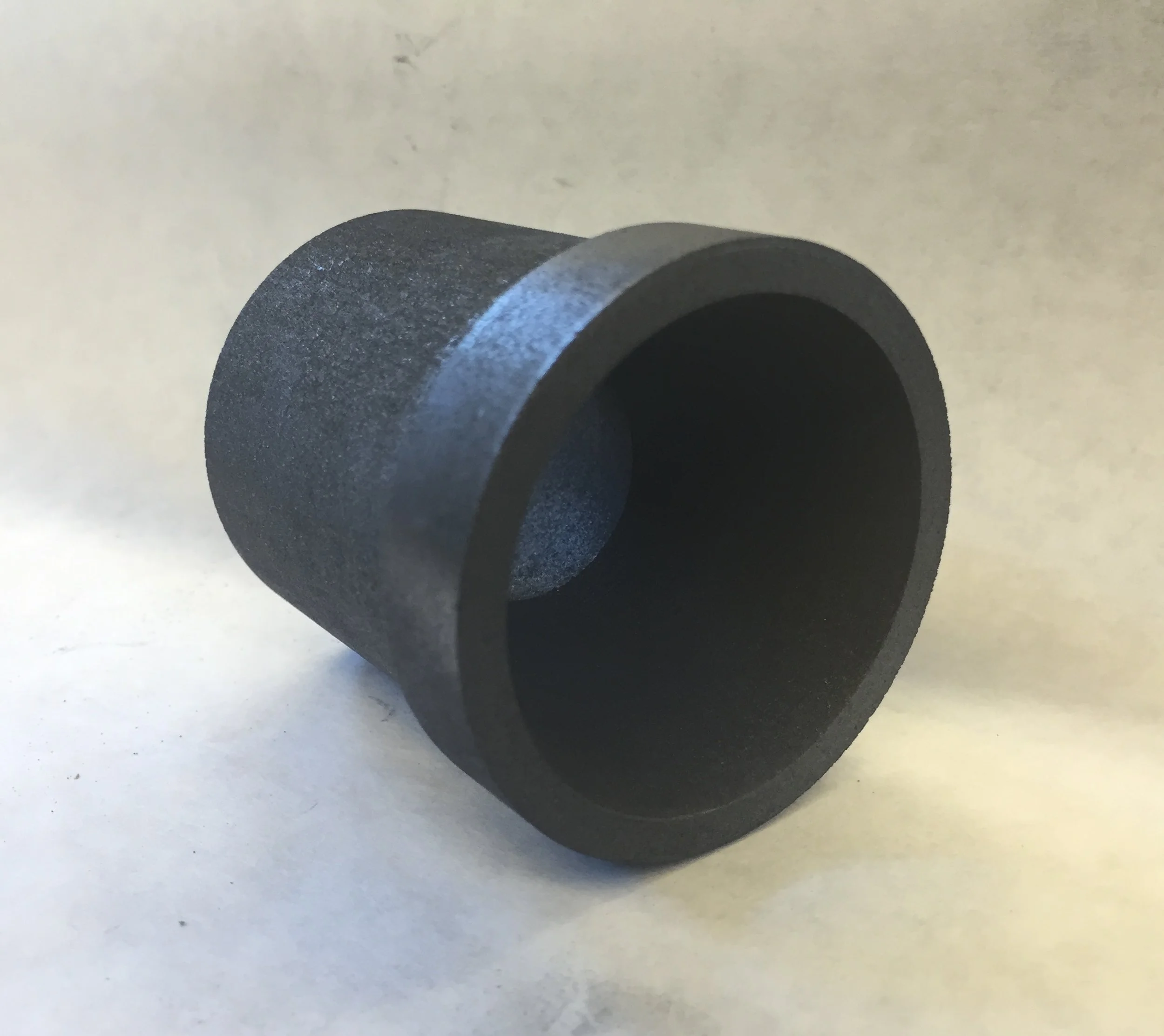

Turned nozzle (graphite) on lathe

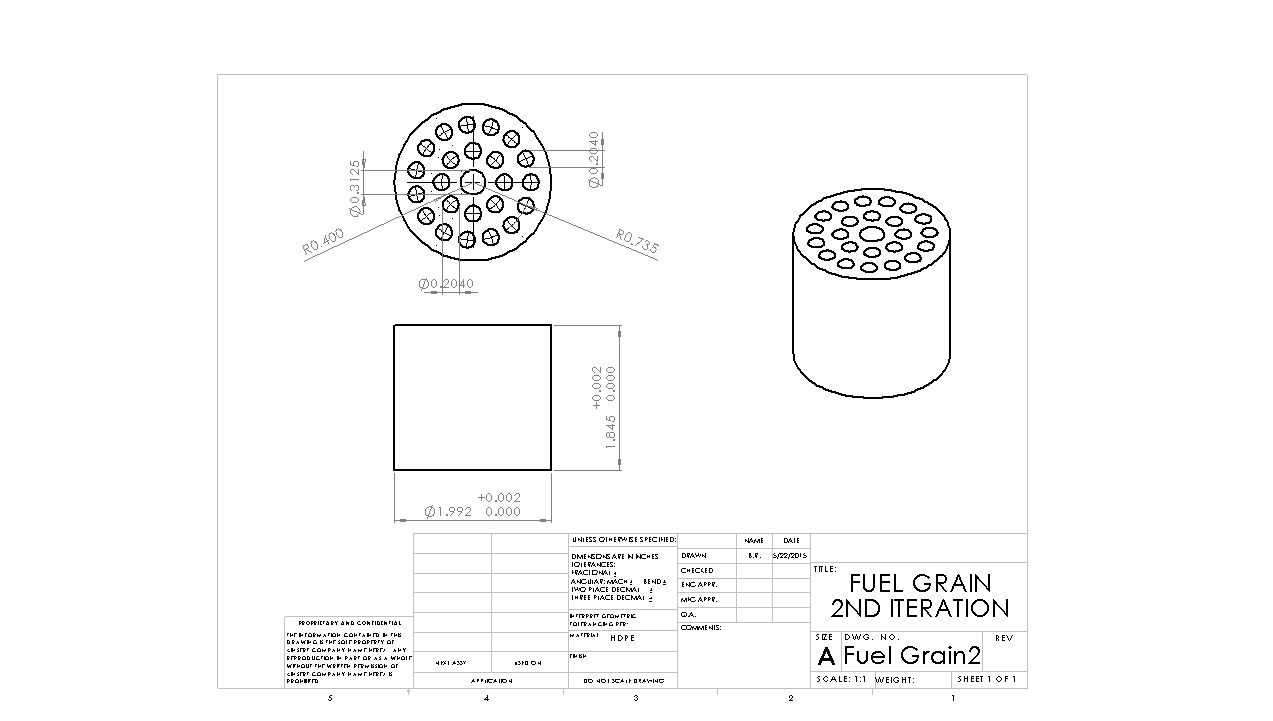

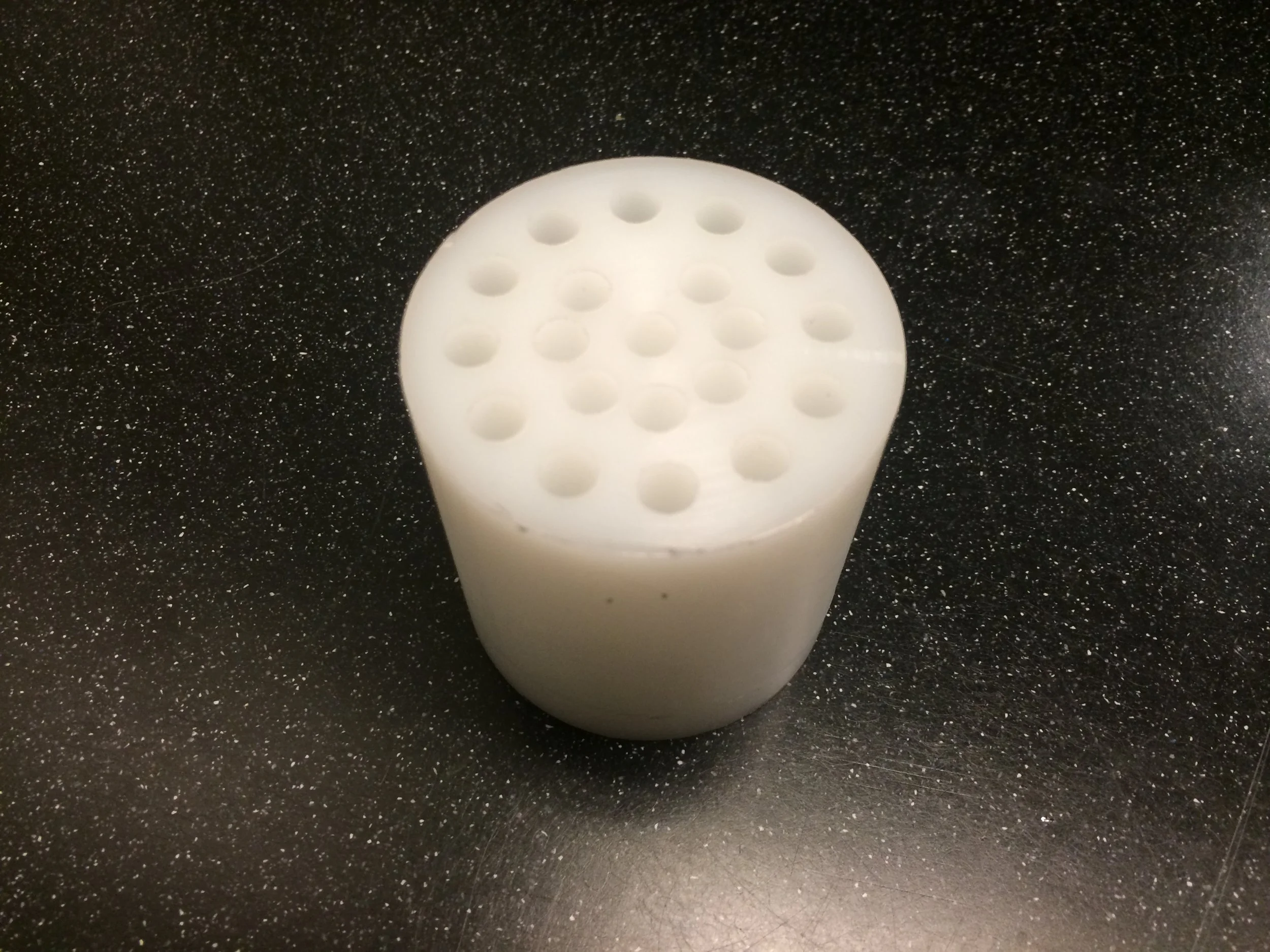

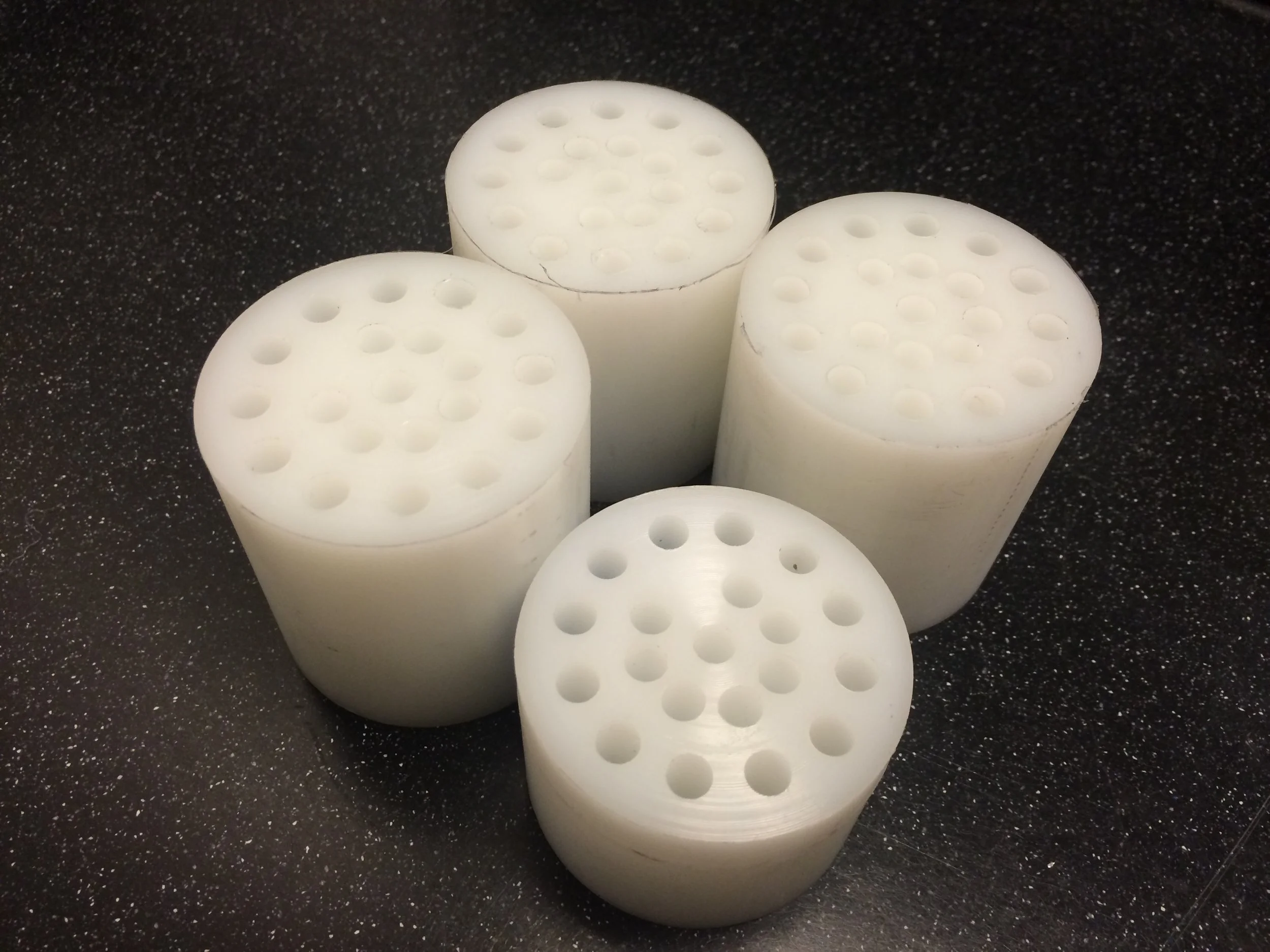

Drilled holes into fuel grains (HDPE) on mill
Tolerances for nozzle and fuel grains went down to 0.001"

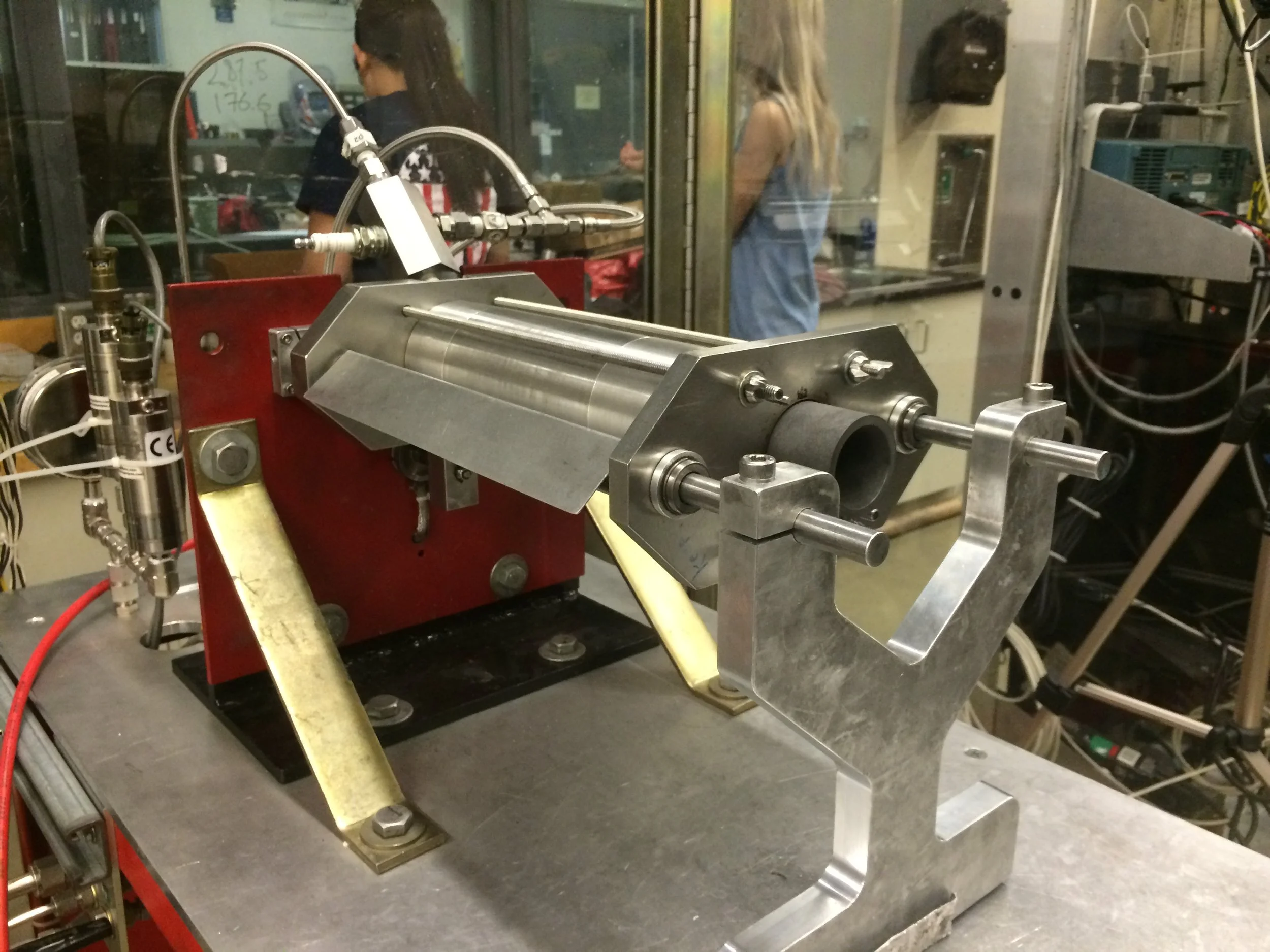

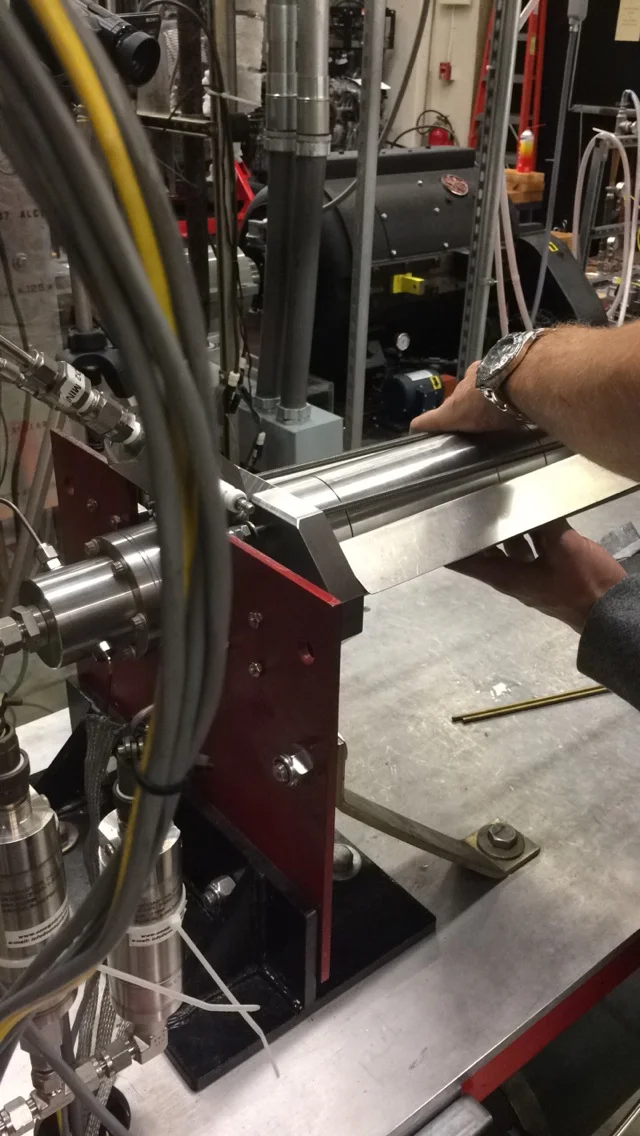

Fired nozzle with machined fuel grains in lab and collected results

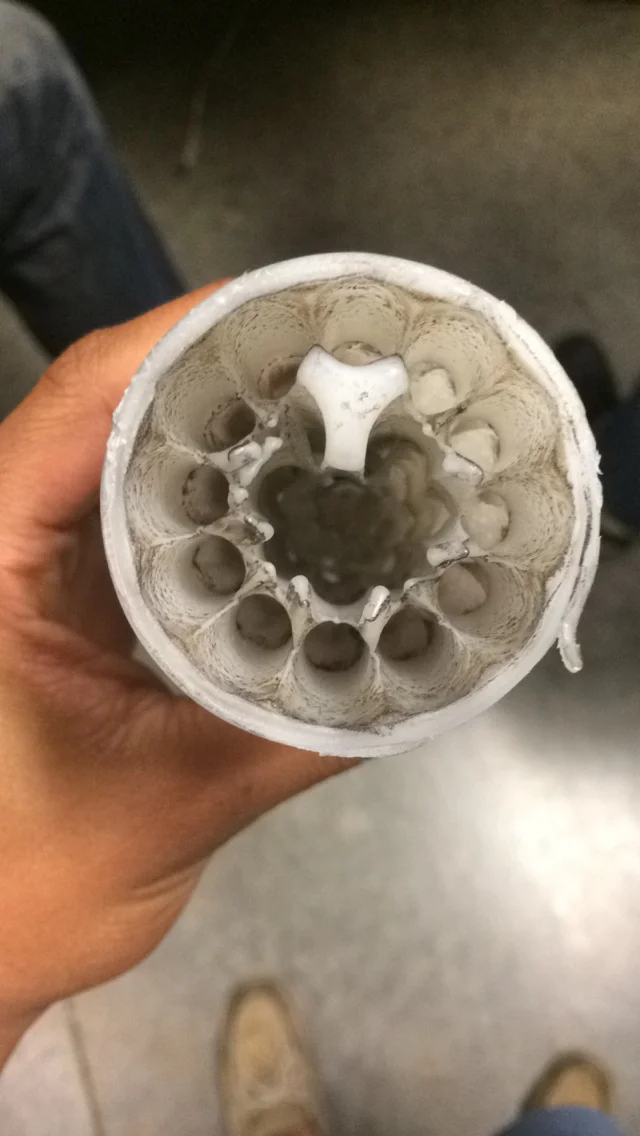

Iterated on fuel grain designs based on previous fire results

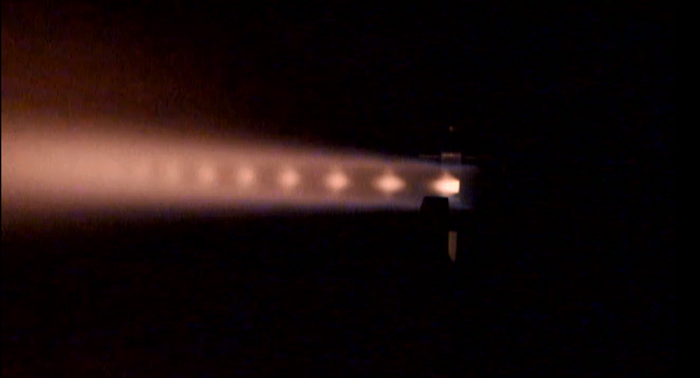

Video below shows simulated rocket fire
